PG64系列行星減速機選型參數規格
| 技術參數 | 規格 | ||||
| 級數 | 速比 | PG64 | PG90 | PG100 | |
| 額定扭矩（Nm) | L1 | 4 | 28 | 75 | 170 |
| 5 | 28 | 75 | 170 | ||
| 7 | 28 | 75 | 120 | ||
| 10 | 18 | 60 | 120 | ||
| L2 | 20 | 40 | 90 | 210 | |
| 25 | 40 | 90 | 200 | ||
| 35 | 40 | 90 | 210 | ||
| 40 | 40 | 90 | 210 | ||
| 50 | 40 | 90 | 220 | ||
| 70 | 40 | 90 | 200 | ||
| 100 | 18 | 60 | 120 | ||
| 防護等級 | IP65 | ||||
| 環境溫度 | 45℃ 至 -15℃ | ||||
| 技術參數 | 規格 | ||||||
| PG64 | PG90 | PG110 | |||||
| 最大扭矩 | Nm | 1.5倍額定扭矩 | |||||
| 緊急制動扭矩 | Nm | 2.5倍額定扭矩 | |||||
| 最大容許徑向力 | N | 680 | 1750 | 3100 | |||
| 最大容許軸向力 | N | 340 | 875 | 1250 | |||
| 抗扭剛性 | Nm/arcmin | 13 | 31 | 82 | |||
| 最大輸入轉速 | rpm | 6000 | 6000 | 4500-6000 | |||
| 額定輸入轉速 | rpm | 3300-5500 | 2600-4500 | 2300-4200 | |||
| 噪音 | dB | ＜58 | ＜60 | ＜65 | |||
| 平均壽命 | h | 20000 | |||||
| 滿載效率 | % | L1≥95% L2≥90% | |||||
| 回程間隙 | P0 | L1 | arcmin | ≤3 | ≤3 | ≤3 | |
| L2 | arcmin | ≤5 | ≤5 | ≤5 | |||
| P1 | L1 | arcmin | ≤5 | ≤5 | ≤5 | ||
| L2 | arcmin | ≤8 | ≤8 | ≤8 | |||
| 轉動慣量 | L1 | 4 | Kg.cm2 | 0.13 | 0.51 | 2.87 | |
| 5 | Kg.cm2 | 0.13 | 0.47 | 2.71 | |||
| 7 | Kg.cm2 | 0.13 | 0.45 | 2.62 | |||
| 10 | Kg.cm2 | 0.03 | 0.44 | 2.57 | |||
| L2 | 20 | Kg.cm2 | 0.03 | 0.23 | 0.47 | ||
| 25 | Kg.cm2 | 0.03 | 0.23 | 0.47 | |||
| 35 | Kg.cm2 | 0.03 | 0.23 | 0.47 | |||
| 40 | Kg.cm2 | 0.03 | 0.23 | 0.47 | |||
| 50 | Kg.cm2 | 0.03 | 0.2 | 0.44 | |||
| 70 | Kg.cm2 | 0.03 | 0.2 | 0.44 | |||
| 100 | Kg.cm2 | 0.03 | 0.2 | 0.44 | |||

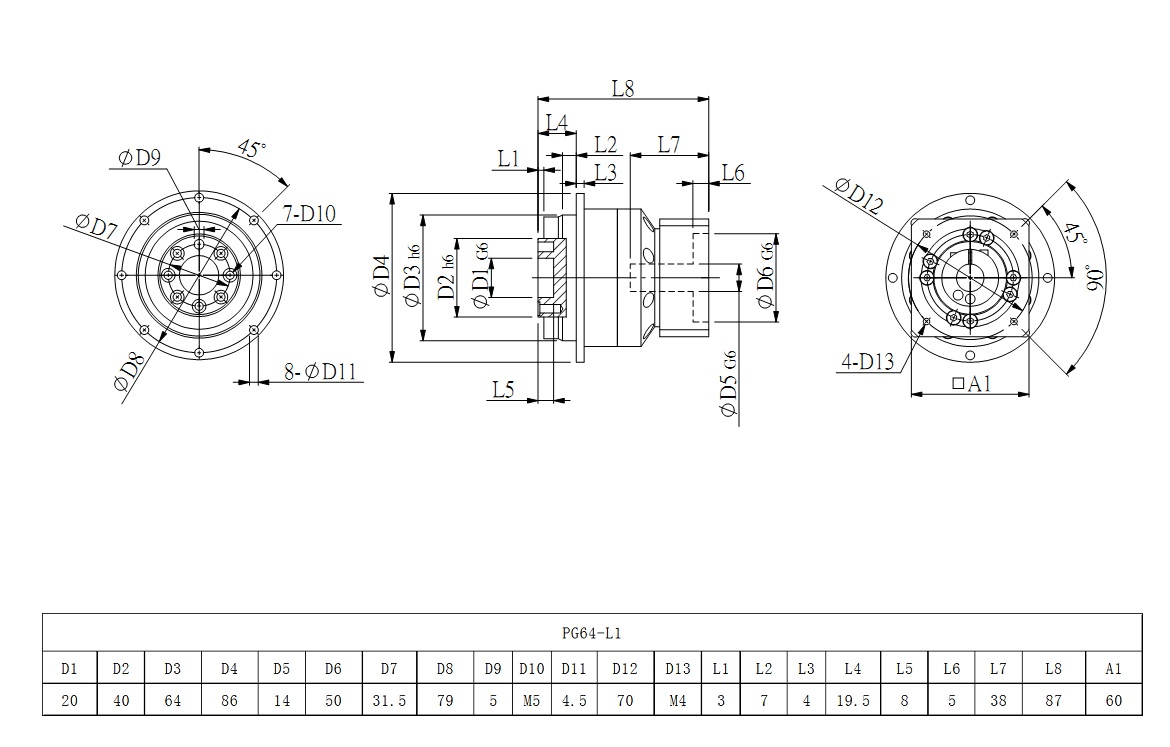

PG64系列行星減速機圖紙L1
PG64系列行星減速機圖紙L2
關鍵字：PG64系列行星減速機圖紙選型參數規格大全
